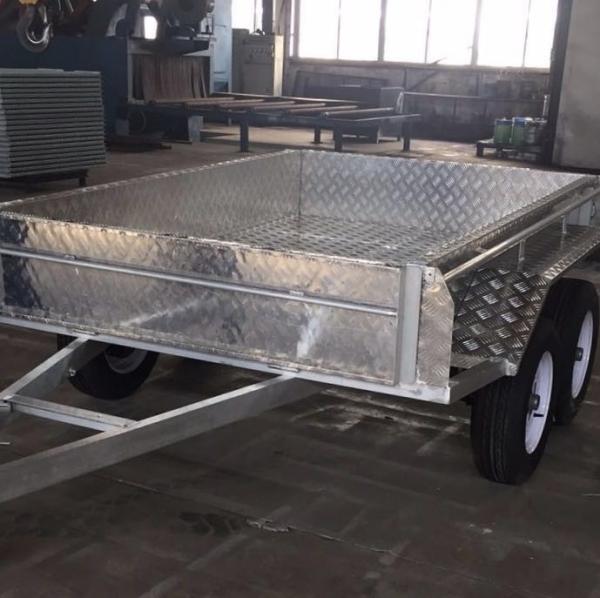

Double Axle Aluminum Trailer 8x5 Box Trailer With 350mm Deep Tray

Product Categories
Changzhou Hongle Machinery Co.,Ltd
Contact Now

Double Axle Aluminum Trailer 8x5 Box Trailer With 350mm Deep Tray

  • 1
  • 2
  • 3

Brand Name : HongLe

Model Number : 8x5

Certification : ISO9001

Place of Origin : Jiangsu China

MOQ : 1 container

Price : Negotiable

Payment Terms : FOB

Supply Ability : 5000/year

Delivery Time : 20 days

TYRES : 185R14C

SIDE TIE RAILS : 32x3mm Aluminum Pipe Round

SUSPENSION : Rocker Roller Springs

AXLES : Solid Axle 45mm Square

CHASSIS : 50x50 SHS

DRAW BAR : 100x50x3mm RHS V-type Steel

FLOOR : 3mm Aluminum Checker Plate

Contact Now

Description

ALUMINIUM ROLLED BODY TANDEM

STANDARD FEATURES

  • Rolled C/Plate floor with 350mm High Side
  • Front & rear opening tailgates tie rails
  • C/Plate Tailgates & Mudguards
  • Swing handles to secure the tailgates
  • V- type draw bar made from square RHS tube
  • Spare Wheel Holder on Draw Bar
  • Lockable plunger coupling
  • LED ADR approved lights and reflectors
  • Light protectors
  • Mudflaps
  • New wheels
  • Plug holder fitted on draw bar
  • Mechanical disk brakes /Cable hand brake fitted
  • Tube holders in each corner for fitting cage or H/frame
  • Skid rails each side

SPECIFICATIONS

BODY/FLOOR 350MM Sides 2 piece, 3mm Rolled Aluminum Checker Plate Tub
TAILGATES 3mm Aluminum Checker Plate, with tie rails
MUDGARD 3mm Aluminum Checker Plate, 250mm Wide 4 Fold
PANS 3mm Aluminum Checker Plate Pans
SIDE TIE RAILS 32x3mm Aluminum Pipe Round Full Length (extra reinforced)
COUPLING 50mm Mechanical over Ride Plunger Type / Hand Brake
SUSPENSION Rocker Roller Load Sharing Springs, 6-Leaf 60x6mm
AXLES/BRAKES 45mm Square Solid/ Mechanical Disc
BRAKES Mechanical Disc/Galvanised Calliper’s True Cable Hand Brake
HUBS/FORD SL B-type PCD 114.3, 5 x 1/2" Studs (Stud Centre 66.6mm)
BEARINGS Bearing B-type Inner Large L68149 Outer Small LM12710
RIMS NEW Sunraysia Type 14x5.5" CB 84mm PCD 114.3
TYRES NEW 185R14C
CHASSIS 50x50x3mm Aluminum SHS
DRAW BAR 100x50x3mm Steel RHS V-type, with spare wheel holder
SAFETY CHAIN 10mm Rated chain 450mm Long
LIGHTS LED Multi volt 12-24v, With Side Clearance Lights 7-Pin plug

8x5
SIDE HEIGHT 350
FLOOR HEIGHT 530
OVERAL HEIGHT 880
INSIDE LENGTH 2440
INSIDE WIDTH 1525
DRAWBAR LENGTH 1500
OVERAL LENGTH 3990
OVERAL WIDTH 2030
LOAD RATING KG 2000
ATM KG
PAYLOAD KG
